POLYURETHANE A-ARM BUSHING, KIT, CRV Powersports – Fits ZForce 500, 800 Trail, 800 EX, UForce 500, 800, 1000

Made in the USA of high quality cast polyurethane. Polyurethane bushings offer high load and high compression abilities that function long after rubber and plastic bushings have failed.

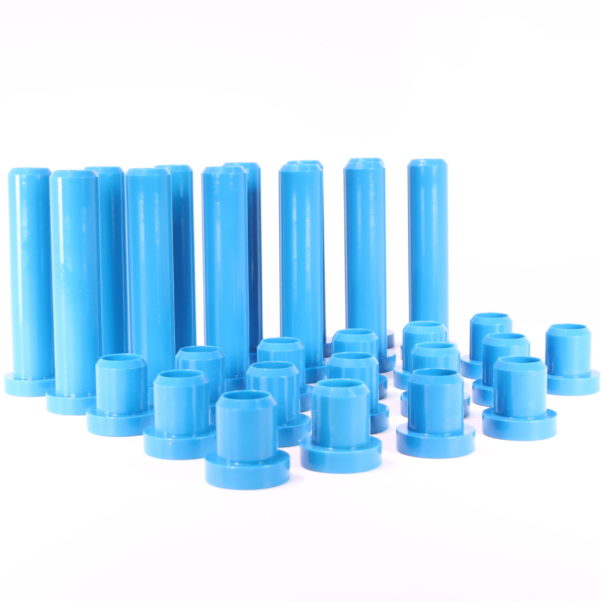

Kit includes:

• 12x Long Bushings
• 16x Short Bushings

Fits:

• 2019-2022 UForce 1000
• 2013-2022 UForce 800
• 2016-2021 UForce 500
• 2015-2022 ZForce 800 Trail & EX
• 2018-2019 ZForce 1000
• 2016-2022 ZForce 500
• 2013-2015 ZForce 600
• Does NOT fit 2023 UForce 1000, 2022+ UForce 1000 XL, or ZForce 800 Gen 2.

Installation Instructions:

• Remove A-arm, shocks, or bearing carrier from machine.
• Clean and inspect arm for dents, damage, and debris. If any sign of damage the arm needs to be replaced.
• Install both bushings in the arm, shock eye, or carrier.
• Grease the spacer/pivot sleeve to be installed on the inside of the bushings. New spacers must be installed for warranty coverage to remain intact.
• Stand component on end on the work bench.
• Place a soft towel or cloth on workbench to avoid damage to the bottom bushing.
• Tap the spacer/pivot sleeve down thru the bushings with a rubber dead blow hammer.
• Repeat for other side.
• Reinstall arm or carrier on the machine and torque to factory specs.
• Fill arms with grease (if your model has a grease fitting) after installation on the machine to prevent water from leaking in through the fitting.

Warranted against manufacturing defects for 60 days from the date of purchase. Improper installation, use of used spacers, and failure to grease will void warranty. Warranty coverage for manufacturing defects of the bushing only, no warranty will be extended for the use of our bushings for damage to other components. Our obligation is limited to a refund of the purchase price or replacement at our discretion.
